Product Applications>Lithium-ion Battery Manufacturing Equipment>Pouch Battery Electrolyte Filling Machine

Lithium-ion Battery Manufacturing Equipment

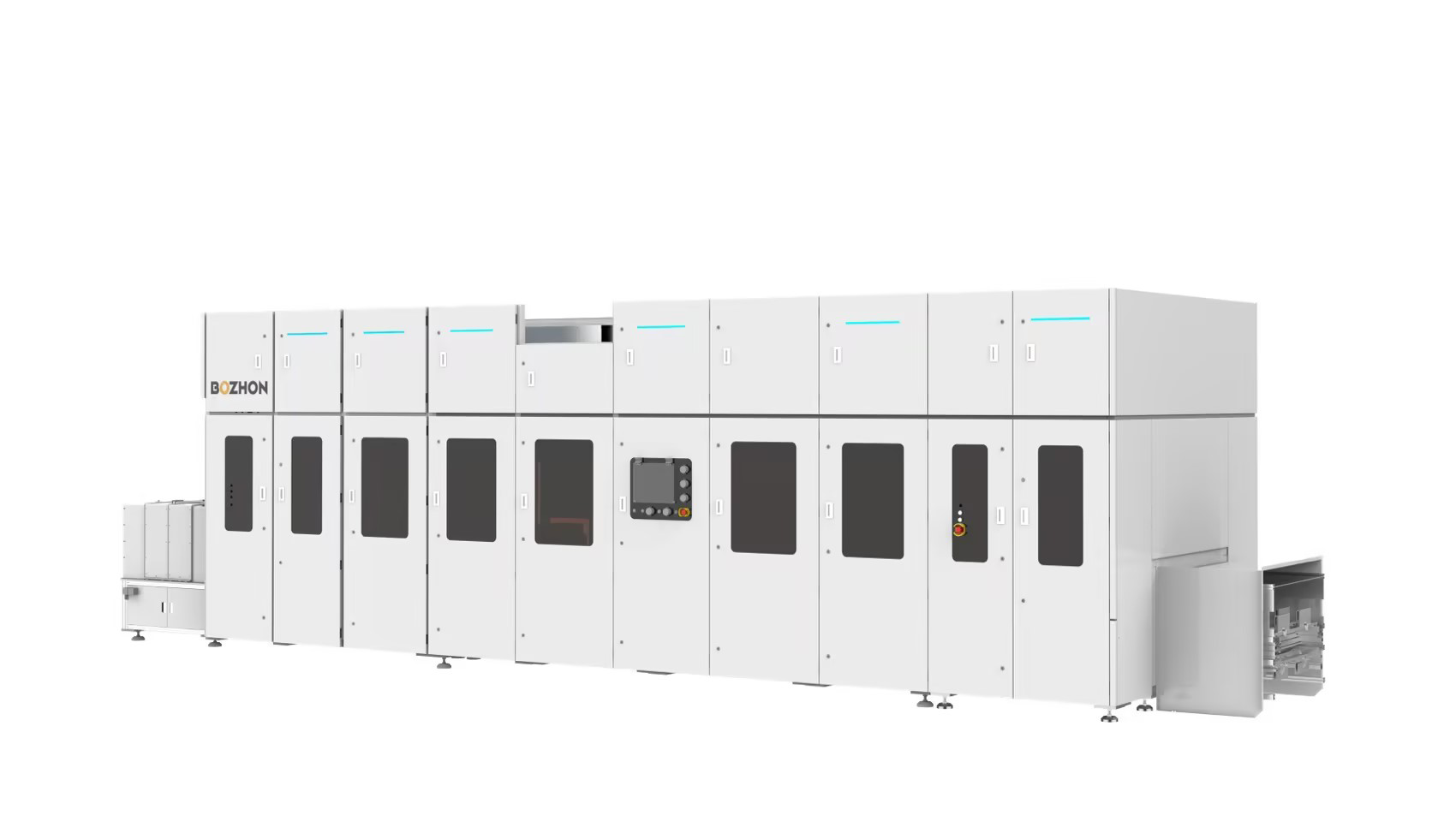

Pouch Battery Electrolyte Filling Machine

Pouch Battery Electrolyte Filling Machine It is applicable to the fully automatic electrolyte injection and pre-packaging of lithium-ion pouch battery, and can achieve functions of cell loading, shaping, code scanning, weighing, vacuum injection, standing, heat sealing, NG sorting, unloading.

Parameters

Equipment size

L7.8m * W3.5 * H2.8
Weight

About10000kg
Air source

0.5-0.7MPa
Power supply

380VAC,50Hz
Power

40KW
Capacity

≥20PPM
Yield

＞99.5%
Activation

≥99%
Applicable product

Intra-series replacement clamp, cross-series replacement contact technical support
Product size

L40-590mm W20-180mm T4-28mm

Advantages

High Speed：Operating Efficiency: ≥20 ppm
Comprehensive Functions：It has functions of automatic shaping, code scanning, weighing, vacuum injection, standing, heat sealing, NG sorting, automatic unloading
Equipment Features：Vacuum injection and soaking are adopted to effectively develop better absorption of electrolyte
The electrolyte storage system adopts double tank design to effectively solve the problem of bubbles
Can automatically clean the pipeline and facilitate operation and maintenance
Injection accuracy: ±0.5% of injection volume
Seal Head Temperature: ±3 ℃
